Grass-filled Sudpave parking bays with concrete strips along a road
Sudpave permeable paving grids · South Africa

Gravel grids and grass pavers for driveways and car parks

Sudpave is South Africa's first locally developed and manufactured permeable paving grid. Laid over a prepared sub-base and filled with gravel or grass, it lets rainwater soak away where it falls instead of overloading stormwater drains – for driveways, car parks, access routes and SUDS source control.

  • CSIR load tested
  • Gravel or grass fill
  • Locally manufactured
  • CSIR testedSuitable for any licensed vehicle loading
  • 1 m × 1 m panelsFour pre-connected pavers for faster laying
  • 25+ yearsLife expectancy of the UV-stabilised material
  • Made in GautengKya Sand, Randburg – courier delivery or collection
Sudpave paving grids

One grid, two finishes: gravel or grass

Sudpave is an open cell structure, either gravel filled for frequent, intensive use or grass planted for occasional use. Either way, the open structure lets rainwater permeate into the ground at its source.

Finished Sudpave gravel parking court in front of the garages
Gravel fill

Gravel grids for driveways and car parks

With gravel infill Sudpave can handle heavy vehicle traffic loading. The grids lock the gravel in place, so the surface stays level under cars without rutting or the stones spreading.

  • High load-bearing capacity when gravel filled
  • For frequent, intensive use
  • Typically filled with 6–10 mm angular stone
See a gravel grid driveway
Grass parking bays on Sudpave grass pavers at the University of Pretoria
Grass fill

Grass pavers for parking and access routes

The grassed option reduces the ‘heat island effect’: grassed parking absorbs less heat, so the designer can create a cooler environment while keeping a parking surface.

  • Natural grass surface
  • For occasional use, such as overflow parking
  • Seed, plant or lay thin-cut instant lawn
How to install grass and gravel
Gravel grid driveway with paver strips at a house in Somerset West Sudpave gravel grids laid on the bedding layer inside the edging Sudpave gravel grids being filled with gravel in front of the garages
Featured project

A 140 m² gravel driveway and parking court at a family home, built on Sudpave gravel grids by Simon Lapinski Landscapes & Gardens and completed in April 2021. Rainwater soaks away where it falls instead of running off into the street drains.

“The client is over the moon and Sudpave units work brilliantly, definitely going to advocate use in future projects.”

Simon Lapinski, Simon Lapinski Landscapes & Gardens
Why permeable paving

Rainwater soaks away where it falls

Urban growth has expanded the area of roofs, tar and hard paving to the point where stormwater infrastructure can no longer cope. Permeable paving is a source-control approach to that problem, known as a Sustainable Urban Drainage System (SUDS) – hence the name Sudpave.

Similar paving grids have been available in Europe, the USA and Australia for about 25 years. This tried and tested method of permeable paving is now locally manufactured in South Africa.

  • Replenishes ground water naturally
  • Filters motor oils and other pollutants found in parking areas
  • Reduces the incidence of flooding
  • Low maintenance, and recyclable or re-usable

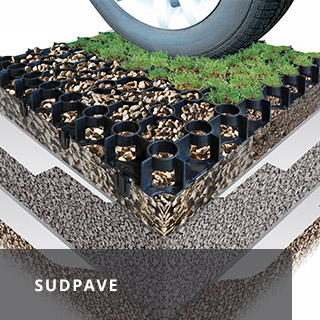

Cut-away of a Sudpave grid filled with grass, carrying a vehicle tyre
Applications

Where Sudpave is used

CSIR tested and suitable for any licensed vehicle loading, from a small car to an 18-wheeler truck.

  • Driveways
  • Car parks and overflow parking
  • Emergency and fire access routes
  • Pedestrian walkways
  • Golf buggy paths
  • Wheelchair access
  • Aircraft taxiways and helipads
  • Equestrian arenas
  • Livestock milking parlours
  • Water tank and garden shed bases
  • Base for synthetic grass
  • SUDS source control
Pricing and orders

Planning a driveway, car park or access route?

Sudpave is priced per square metre. Call Gary on 082 652 5445 or email [email protected] for a quote.
